JPI-9033
Standards:
Specification:
Salient Features

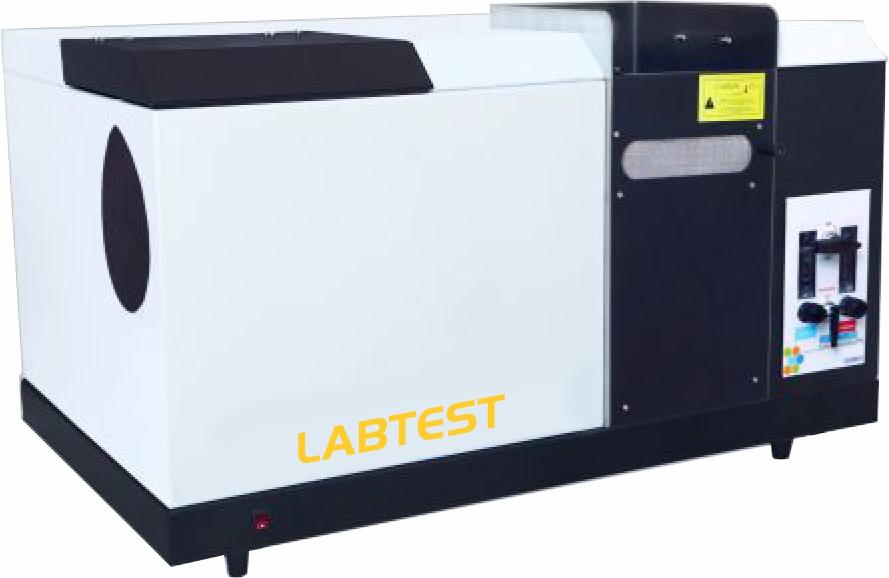

Computer controlled, high performance, optically single beam atomic absorption spectrometer having following specifications.
Optics
Real time single beam with Deuterium background
Monochromator
CZ design with 330 mm focal length, 1800 line/mm grating and 185-930 nm wavelength range. Automatic emission wavelength selection and peaking. Continuously variable slits with 0.2 to 2 nm spectral bandwidth. Automatic wavelength scanning. Selected wide range.
Detector
High performance multi-alkali photo multiplier tube R928
Motorized Lamp Turret
Eight lamp motorized turret with automatic lamp selection and individual lamp peaking automatically warmed up. Compatible with standard & coded hollow cathode lamps
Flame Control
Manual flame control fully safe and sturdy having independent flow meter regulator for fuel and oxidant.
Nebulizer
Fully inert nebulizer
Spray Chamber
PTFE spray chamber and adjustable impact bead aerosol.
Burner
Titanium burner for C2 H2 - N2O & C2H2 - AIR
Sensitivity
Greater than 0.7 abs for 5mg/L copper solution with an RSD of less than 0.5% characterstics concentration of copper 0.030 ug/ml.
Output Port
USB Connectivity for PC
Software
Windows 10 based user friendly software.
Dimension
100 x 55 x 58 cm (L x H x W) cm
Weight
65 kg, Unpacked
Electrical Requirements
220/240 V AC, 50/ 60 Hz, 800 VA
Hollow Cathode Lamps
67 Element high intensity single element available
Accessories
Software CD
USB Cable
Manual
Cathode Lamps (optional)
Acetylene Cylinder (optional)
Nitrous Oxide Cylinder (optional)
Regulators (optional)
Moisture Filter (optional)
