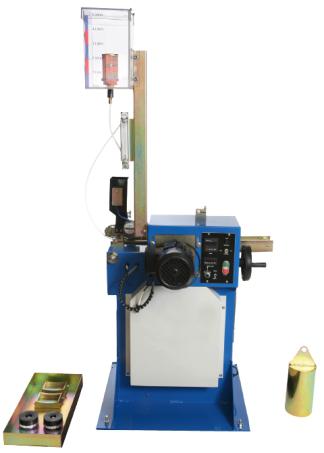

Accelerated Polishing Machine

ZI 5016

Standards:

Specification:

  • High ground steel main spindle running in precision sealed ball bearings additionally protected by a labyrinth seal spindle axially loaded to eliminate end play
  • Adjustable 3 phase motor speed control with adjustable timing belt drive,reducing power consumption and improves control
  • Inverter drive to motor for precise speed control
  • Digital display preset timer and revolution counter
  • Robust welded steel mainframe, standing on adjustable pads
  • Specimens manufactured and easily removed from precision machined moulds
  • 14 Specimens located on ‘Road Wheel’ by rubber rings and held by simpleside fixing
  • Water gravity fed from high level tank through calibrated flow meter
  • Used abrasive and water collected in easily removable tray
  • Loaded tyre raised and lowered to the running surface by mechanical liftingdevice
  • Protection by covers and guards may be easily removed for maintenance

Specifications

  • Road Wheel Speed : 320 ± 5 rev min -1
  • Tyred Wheel Set Diameter mm : 200 ± 3
  • Tyred Wheel Set Width mm : 38 ± 2
  • Tyred Wheel Hardness : (69 ± 3) mm IRHD
  • Applied Load on the Wheel : (725 ± 10) Newton
  • Electrical Supply : 230v / 110v. 50/60 Hz Single Phase 13 amp
  • Dimensions mm (WxDxH) : 810 x 790 x 1230
  • Water Tank Height cm : 155
  • Palletised Dimensions mm (WxDxH) : 1200 x 800 x 1280
  • Weight (max) Kg : 210
