ZI 5012
Standards:BS 812
Specification:

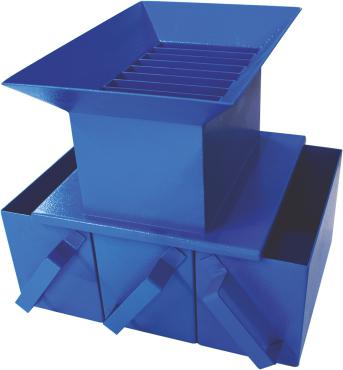

For the rapid preparation of samples, i.e. division into two representative portions. Detailed below is a range of dividers, each constructed of heavy gauge sheet metal with particular attention given to reinforcement of the partition to maintain the accuracy of the slot dimensions. The unit offered are supplied in a range of sizes from 7 mm to 75 mm
| Model No. | Slot Width | No. of Slots (Ltrs.) | Approx. Capacity | Weight Kg. |
| ZI 5012A | 7 | 12 | 0.3 | 1.5 |
| ZI 5012B | 13 | 12 | 2.0 | 6.0 |
| ZI 5012C | 15 | 12 | 2.0 | 8.0 |
| ZI 5012D | 19 | 10 | 4.0 | 9.0 |
| ZI 5012E | 25 | 10 | 4.0 | 11.5 |
| ZI 5012F | 30 | 10 | 4.0 | 17.5 |
| ZI 5012G | 38 | 8 | 11.0 | 17.5 |
| ZI 5012H | 50 | 8 | 14.0 | 22.5 |
| ZI 5012I | 64 | 8 | 18.0 | 27.0 |
| ZI 5012J | 75 | 8 | 22 | 35.0 |
