ZI 4027
Standards:
Specification:

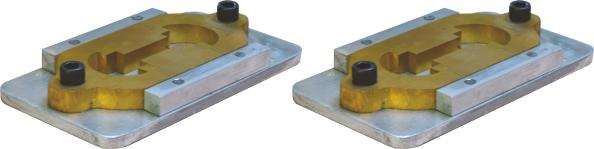

A set of three moulds as per IRC-SP-53-2002 made of brass /gunmetal with the shape, dimensions and tolerances. The ends B & B` are known as clips, and the parts A & A' are known as sides of the mould. The dimensions of the mould shall be such that when properly assembled it will form a briquette specimen having the following dimensions. Total length : 75 ± 0.5 mm
A = 36.5 ± 0.1 MM
B = 30.0 ± 0.1 MM
C = 17.0 ± 0.1 MM
D = 10.0 ± 0.1 MM
E = 10.0 ± 0.1 MM
