ZI 4020
Standards:ASTM D88, AASHTO T72
Specification:

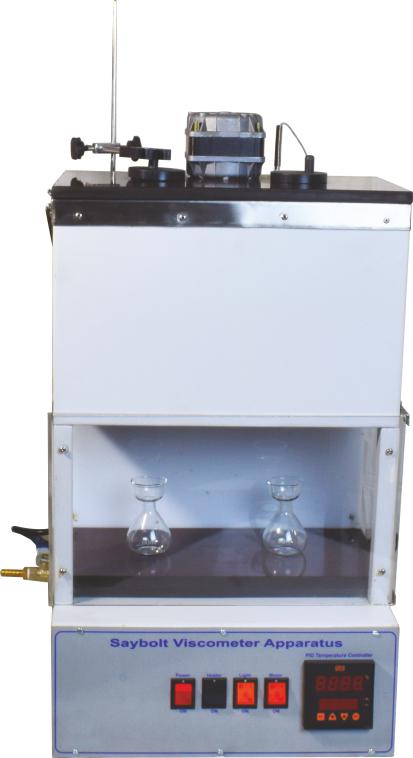

The Saybolt Viscometer is used to determine empirical measurement of Saybolt Viscosity of petroleum products at specified temperatures.
The viscometer can be used for temperatures between 21 to 99°C (70 to 210°F) the viscometer includes wateroil bath, stirrer, cooling coil, electric heater with digital thermo regulator, furol orifice, universal orifice, thermometer support and 2 x 60 ml glass Saybolt Viscosity Flask.
Viscosity thermometer set consists of 6 thermometers with the temperature ranges; 19 to 27°C, 34 to 42°C, 49 to 57°C, 57 to 65°C, 79 to 87°C (250 mm length) and 95 to 103°C where each thermometer with 0.1°C subdivisions.
Filter funnel, withdrawal tube and thermometer set should
be ordered separately.
Supplied complete with:
Universal orifice
Furol orifice
Thermometer support
Heat transfer oil, 5 lt
Key Saybolt Viscosity Flask, Glass, 60 ml, 2 pcs.
ZI 4020 : Saybolt Two-tube Digital Viscometer 220-240 v 50-60 Hz
ZI 4020A : Filter Funnel with Wire Mesh and Clip
ZI 4020B : Withdrawal Tube
ZI 4020C : Saybolt Viscosity Thermometer set, 6 Pcs.
ZI 4020D : Saybolt Viscosity Flask, Glass, 60 ml
Dimensions : 450 x 300 x 550 mm
Weight (approx.) : 10 Kg
Power : 750 W
