ZI 2042
Standards:IS: 516 1959, BS 1881-120, ASTM C31, C 617
Specification:

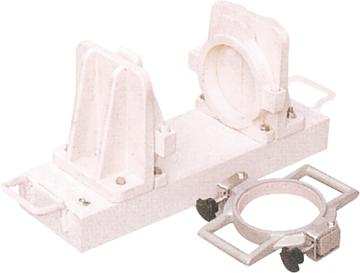

The set comprises of a cylinder capper, a cylinder carrier and a ladle. The cylinder capper consists of a base on which two accurately machined plates are mounted vertically. One plate is firmly fixed and the other one is adjustable horizontally. Two plates are provided with holders for holding the cylinder in position. The holder are split and the bottom half of each holder is fixed firmly and the top half of each is removable and bolted down to the lower half. On the upper parts of the vertical plates 'V' s are provided for pouring the capping compound. Two spacers are also provided. Complete with cylinder carrier and ladle for molten compound.
ZI 2042A For 150 mm dia. x 300 mm length cylinders
ZI 2042B For 100 mm dia. x 200 mm length cylinders
