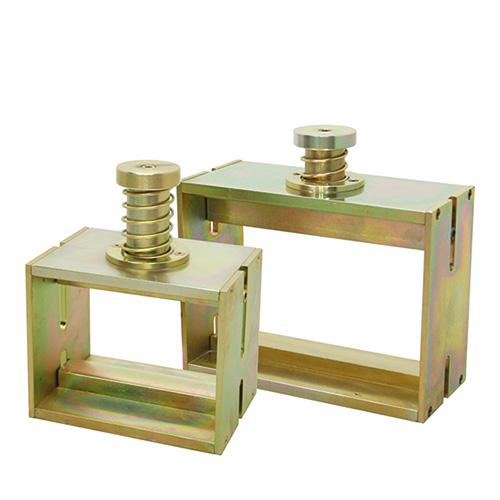

Compression and Flexural Testing Machines Splitting Tensile Test Device

ZI-2061

Standards:EN 1338, 12390-6; ASTM C496

Specification:

The Labtest series Splitting Tensile Test Devices are accessories for compression machines for measuring the splitting tensile strengths of  ø150 x 300 mm and ø160 x 320 mm cylindrical specimens, 150 mm cube concrete specimens and of 60-150 mm height x 220 mm length concrete block pavers according to the requirements of the related standards.

  ZI 2061A ZI 2061C ZI 2061E
Specimen Cylindrical
150x300 mm
160x320 mm
Concrete Block Pavers
60-150 mm height
220 mm length
Concrete Cubes
150x150 mm

Related Standards EN 12390-6
ASTM C496
EN 1338 EN 12390-6
Dimensions 340x150x330 mm 240x160x320 mm 180x150x320 mm
Weight (approx.) 25 kg 17.5 kg 15  kg

ZI 2061A
Splitting tensile test device
For ø150x300 mm and ø160 x 320 mm
Cylindrical specimens, ASTM/EN

ZI 2061B
Distance piece for ZI 2061A
For ø100 x 200 mm, cylindrical specimens, EN

ZI 2061C
Splitting tensile test device
For 60-150 mm height x 220 mm

ZI 2061D
Length concrete block pavers, EN
Splitting tensile test device
For 150x150 mm concrete cubes, EN

ZI 2061E
Distance piece for ZI 2061D
For 100x100 concrete cubes, EN
