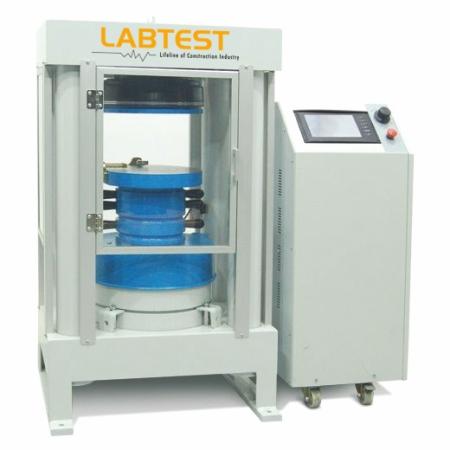

High Stability 4 Pillar Compression Testing Machine

ZI 2061

Standards:IS 14858:2000, EN 12390-3, EN 12390-4, BS 1881 and ASTM C39

Specification:

Capacity: 4000 & 5000 kN

The Labtest Automatic range of 4000 kN and 5000 kN capacity four column compression testing machines (Cube Testing Machine) have been designed for reliable and consistent testing of a wide range of specimens. These compression testers are the results of continuous research to upgrade the testing machines with the latest tech­nologies and conform to the latest standards. These also meet the requirements of CE norms for health and safety of the operator.

Compression Testing Machines are supplied with EN compression platens as standard. Machines also comply with the ASTM C39 standard when used together with suitable platens.

Tests can be performed by either on Control Unit or on a computer with using free Labtest Software. The advantages of performing tests on  computer with using Labtest Software, such as reporting, graphical output, etc.

The Labtest Automatic range of 4000 kN and 5000 kN capacity four column compression testing machines allow inexperienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus.

The only required operations are:

  • Setting test parameters, including pace rate (only required when the specimen type is changed).
  • Pressing the START button on the control unit
  • The machine automatically starts the rapid approach, when the specimen touches the upper platen the rapid approach is ended and starts loading at the pace rate that selected by user and stops once the specimen fails.
  • Automatically saves the test parameters and test results

All models are supplied in Class 1 starting from 50 kN as standard IS 14858:2000, EN 12390-3, 12390-4, BS 1881 and ASTM C39.  Labtest range of Semi-Automatic and Automatic Machines can be upgraded with option special calibration Class 1 starting from 1% of the full range.

This exceptional performance enables the machines to be used for a considerable number of applications including:

  • Early age compression strength tests
  • Flexural tests by using proper accessories
  • Mortar (Cement) compression tests by using proper accessories
  • Core with low diameter compression tests

The compression machines consist of a heavy duty four column frame, automatic hydraulic power pack with data acquisition and control system.


Safety Features

  • Maximum pressure valves to avoid machine overloading
  • Front and rear transparent durable plexiglass guards
  • Emergency stop button
  • Software controlled maximum load value
  • Piston travel limit switch

Specifications:

Model   ZI 2061-1 ZI 2061-2
Capacity kN 4000 5000
Standard EN 12390-4 12390-4
The roughness value for texture
of machine and auxiliary platens
µm < 3.2 < 3.2
Lower platens dimensions mm Ø300 Ø300
Upper platens dimensions mm Ø300 Ø300
Maximum vertical clearance
between platens
mm 520 520
Piston diameter mm 400 420
Maximum piston movement mm 100 120
Horizontal clearance mm 495 515
Power W 750 750
Oil capacity Ltrs. 20 20
Maximum working pressure Bar 315 350
Frame Dimensions mm 805x710x1370 865x640x1555
Power Pack Dimensions mm 605x455x1015 605x455x1015
Frame Weight Kg. 2350 3150
Power Pack Weight Kg. 150 150
