Eco Compression Testing Machine

ZI-2058

Standards:

Specification:

Capacity: 1000, 2000 & 3000 kN

Eco Compression Testing Machine is a budged CTM manufactured to perform compression testing on concrete cube and cylinder specimens. It is a sturdy welded plate type load frame complete with hydraulic power pack attached to it solid machined spacers are supplied to test different sizes of concrete specimen. The piston is duly hardened and chromed for fast lift and return.

Features:

  • Overload Cut Off Facility
  • Piston Over Lift Cut Off Facility
  • Compact & Sturdy Design Load frame to be Base Mount with Pump Clamped to frame
  • Matt Finished PU Paint in Dark Color
  • Push Buttons with Inbuilt Light Indicators
  • Safety Lockable Door
  • Platen Hardness 55 HRC grinded to the finish of 0.03 mm

Note: At the time of ordering, please specify, motor - phase: (i) 440 V AC, Three Phase or (ii) 230V AC, Single Phase

Specifications:

Model No.   ZI 2058-1 ZI 2058-2 ZI 2058-3
Capacity kN 1000 2000 3000
Electronic Display   (EO-D) (EO-D) (EO-D)
Ram Diameter mm 165 234 234
Ram Travel mm 50 50 50
Pressure Gauge Diameter mm Nil Nil Nil
Pressure Gauge kN Nil Nil Nil
Least Count kN 0.1 0.1 0.1
Maximum Pressure Kg./cm 480 480 720
Platen Diameter mm 220 300 300
Horizontal Clearance mm 260 320 350
Vertical Day Light mm 310 310 310
Height of Load Frame mm 770 890 990
Weight of Load Frame Kg. 250 480 720
Lead Screw   No No No
Specimen Size (can be tested)
Cube mm 50, 70.6,
100, 150
100, 150,
200
100, 150,
200
Cylinderical mm 100 x 200 100 x 200
150 x 300
100 x 200
150 x 300
Electrical Version
Motor H.P. 0.5
230 V. 1Ph
440 V. 3PH
50 HZ
1.0
230 V. 1Ph
440 V. 3Ph
50 HZ
2.0
440 V. 3Ph
50 HZ
R.P.M   1440 1440 1440
Contactor V 220 220 220
Height Of Pumping Unit mm 810 810 810
Weight Of Pumping Unit Kg. 90 90 100

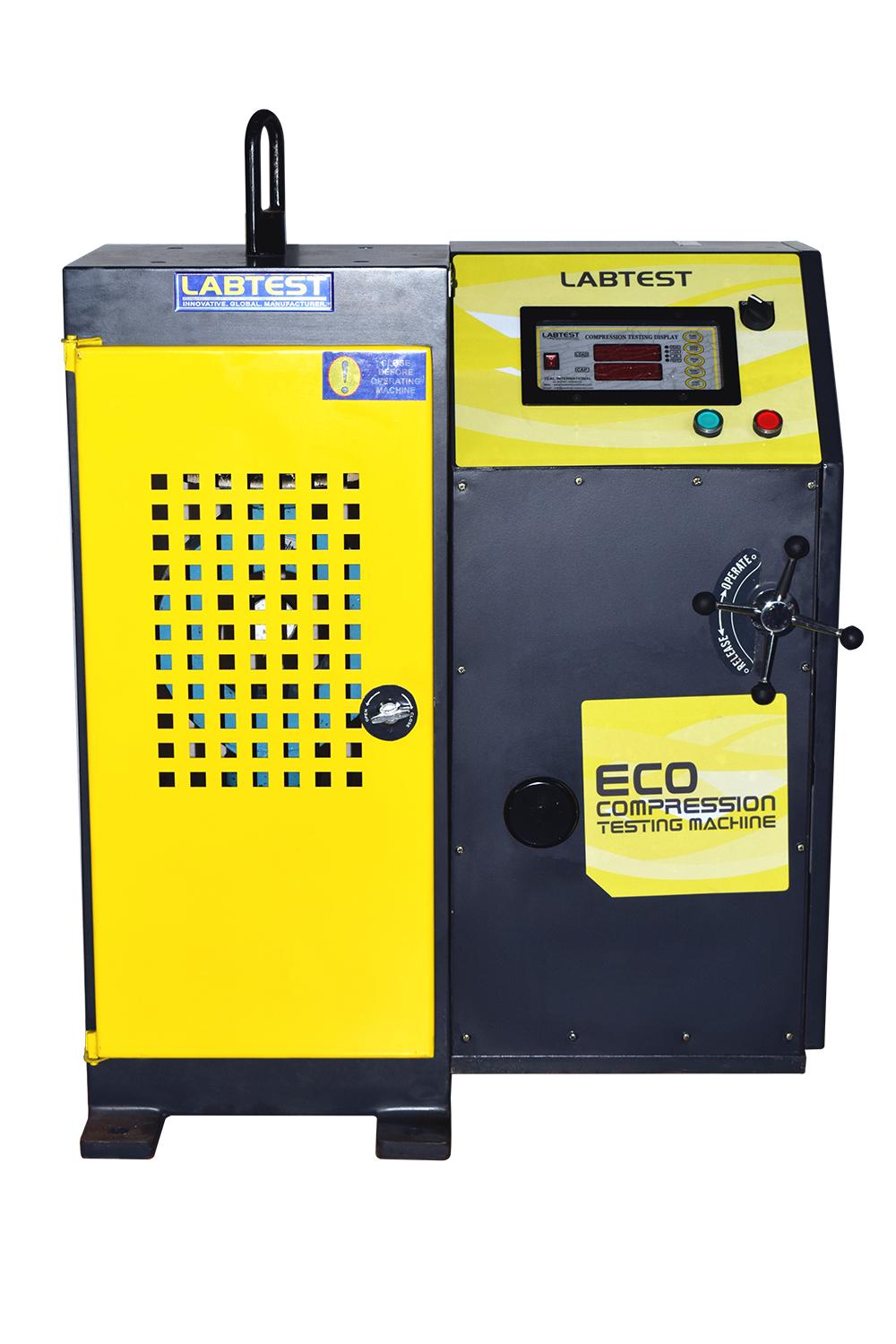

Eco Compression Testing Machine

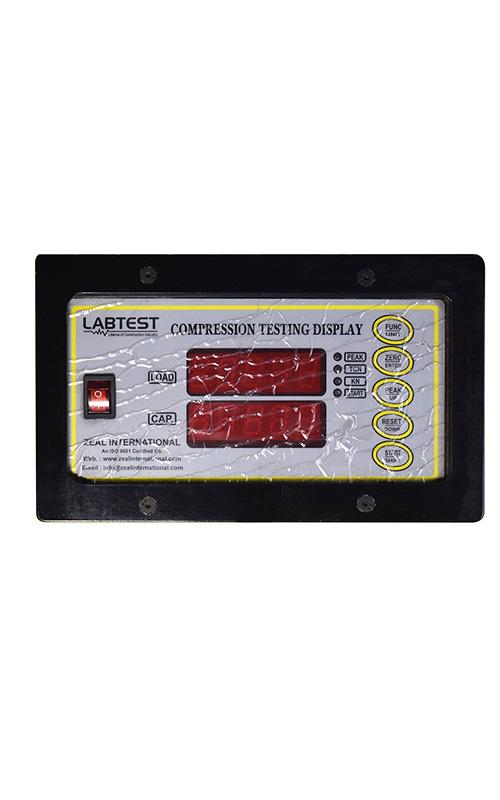

Control Panel
