ZI 2062
Standards:
Specification:

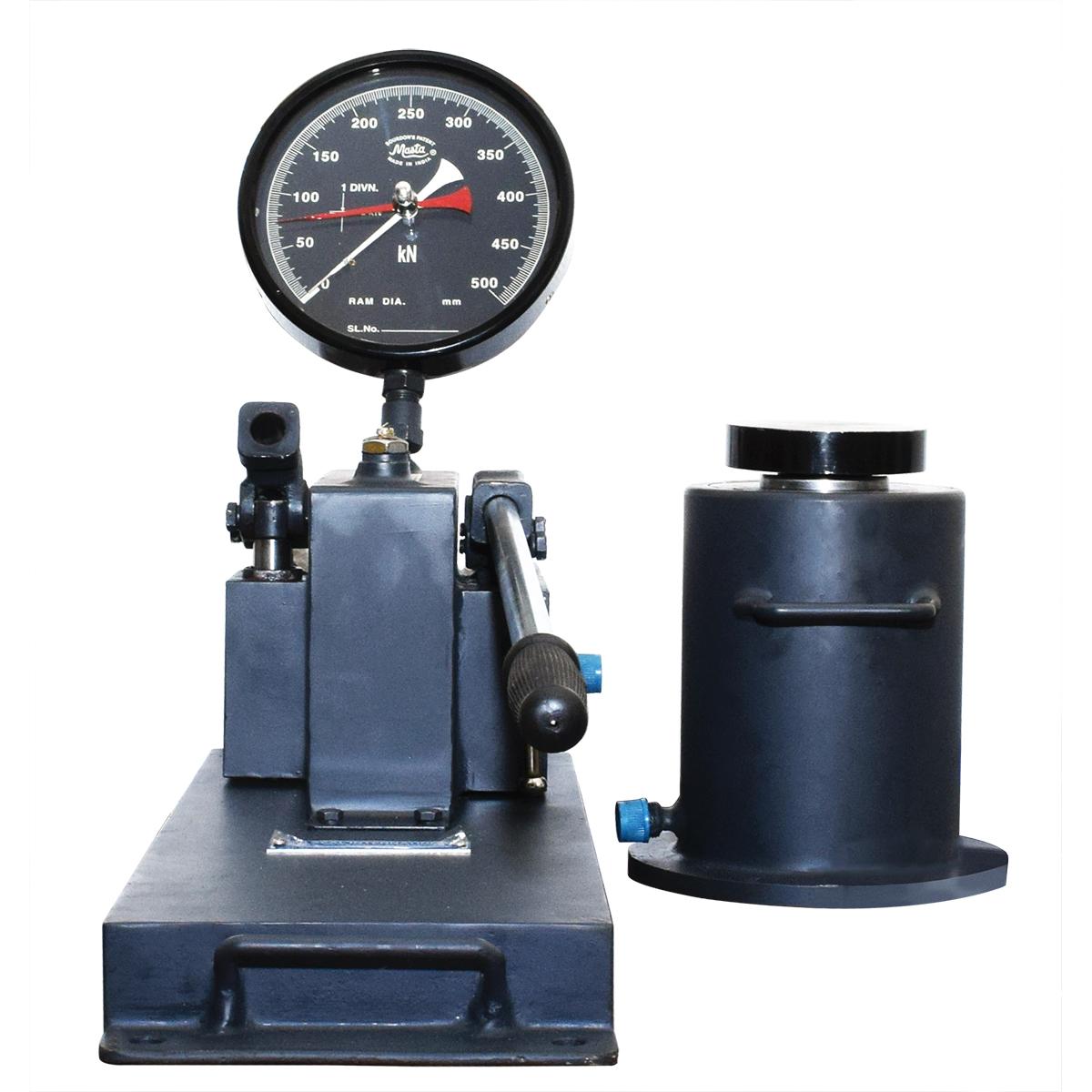

Hydraulic Jacks have multipurpose utility, i.e. application of loads while engaged in field investigation, determination of load carrying capacity of piles in the field, tensioning of wires in pre-stressed structures, loading of members of any structure for deformation characteristics etc. The jacks are supplied complete with manually operated pumping units fitted with bourdon tube type load gauge and high-pressure flexible hose pipe. All the jacks have a piston travel of 50 mm and jacks upto 1000 kN capacity are provided with retraction springs.
Note: Piston Travel upto 150 mm can be provided on request
| Capicity (kN) | Model No. | Specs of Load Gauge | General Specs | ||
| Range (kN) | L.C. (kN) | Piston Dia. (mm) | Piston Stroke (mm) | ||
| 50 | ZI 2062A | 50 | 0.2 | 50.0 | 50 |
| 100 | ZI 2062B | 100 | 0.5 | 78.7 | 50 |
| 250 | ZI 2062C | 250 | 1 | 78.7 | 50 |
| 500 | ZI 2062D | 500 | 2 | 111.2 | 50 |
| 1000 | ZI 2062E | 1000 | 5 | 157.0 | 50 |
| 2000 | ZI 2062F | 2000 | 10 | 222.2 | 50 |
| 3000 | ZI 2062G | 3000 | 10 | 272.2 | 50 |
