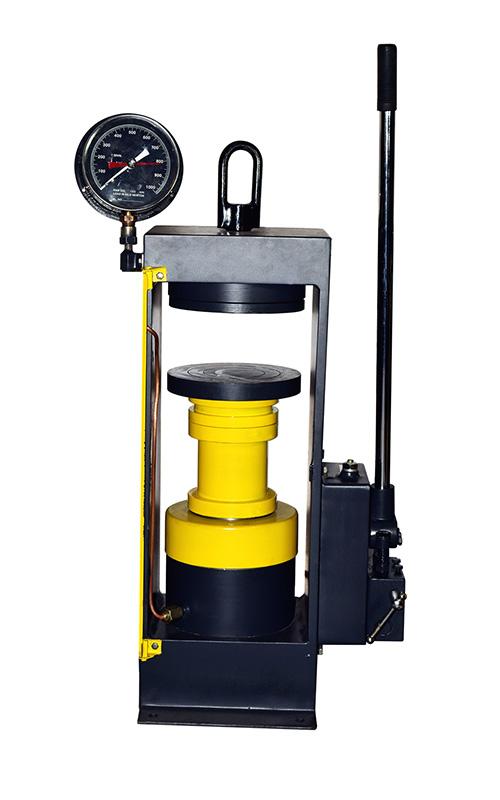

Plate Type CTM, Hand Operated

ZI 2056

Standards:

Specification:

Capacity: 1000, 1200, 1500 & 2000 kN

Features:

  • Sturdy and heavy duty welded frame
  • Performs reliable compression test on concrete specimens
  • Suitable for on-site applications where electrical power supply is absent
  • Simple hydraulic pump makes it portable
  • Supplied with 200 mm heavy duty precise load indicator

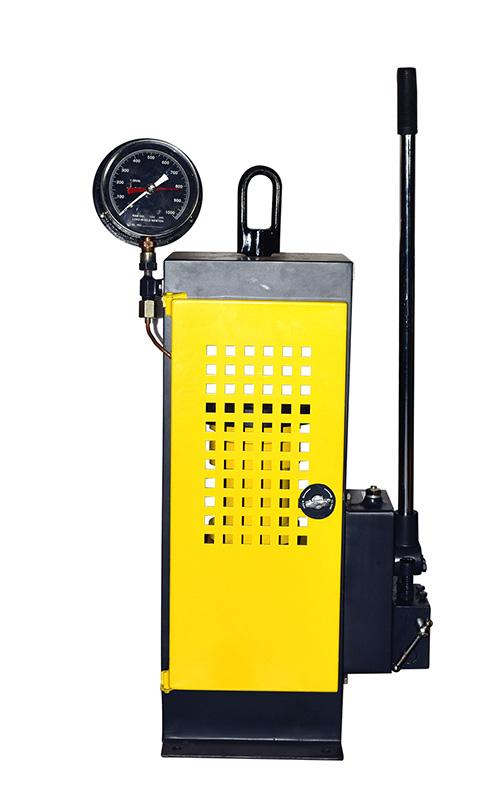

  • Safety door protection from broken concrete pieces.

Specifications:

Capacity kN ZI-2056-1 ZI-2056-2 ZI-2056-3 ZI-2056-4
Ram Diameter mm 165 165 181 234
Ram Travel mm 50 50 50 50
Pressure Gauge Dia. mm 200 200 200 200
Pressure Gauge kN 1000 1200 1500 2000
Least Count kN 5 5 5 10
Maximum Pressure Kg/Sq. cm 480 640 640 480
Platen Diameter mm 220 220 250 300
Horizontal Clearance mm 250 250 270 320
Vertical Clearance mm 310 310 310 310
Load Frame Height mm 770 770 840 890
Weight (approx) Kg 240 250 350 500
Spacer Diameter mm 50 (1pc)
150(1pc)
50 (1pc)
150(1pc)
50 (1pc)
150(1pc)
50 (2pc)
100(1pc)
Specimen can be Tested
Cube mm 100, 150 100, 150 100, 150 100, 150, 200
Cylinder mm 100x200 100x200 100x200
150x300
100x200
150x300
