Concrete Flow Table Test Set

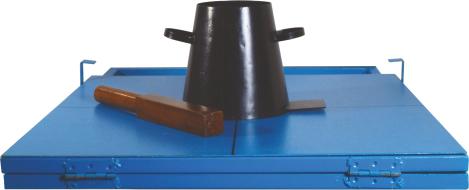

The test set is used for concrete mixes of high workability and determines flow index as an arithmetic mean of the diameter of the specimen after working on a flow table. The apparatus consists of a double steel table, an upper table measuring 700 x 700 mm and hinged at one side to the lower table. The top table is inscribed and all parts are protected against corrosion. The stainless steel cone has a 130 ±2 mm top diameter, 200 ±2 mm base diameter and 200 ±2 mm height and 1.5 mm thickness. Dimensions: 700 x 850 x 300 mm, Weight (approx.) 40 kg
ZI 2010 : Concrete flow table test set
ZI 2010-A : Flow cone for
ZI 2010-B : Wooden tamper 40 x 40 x 335 mm
