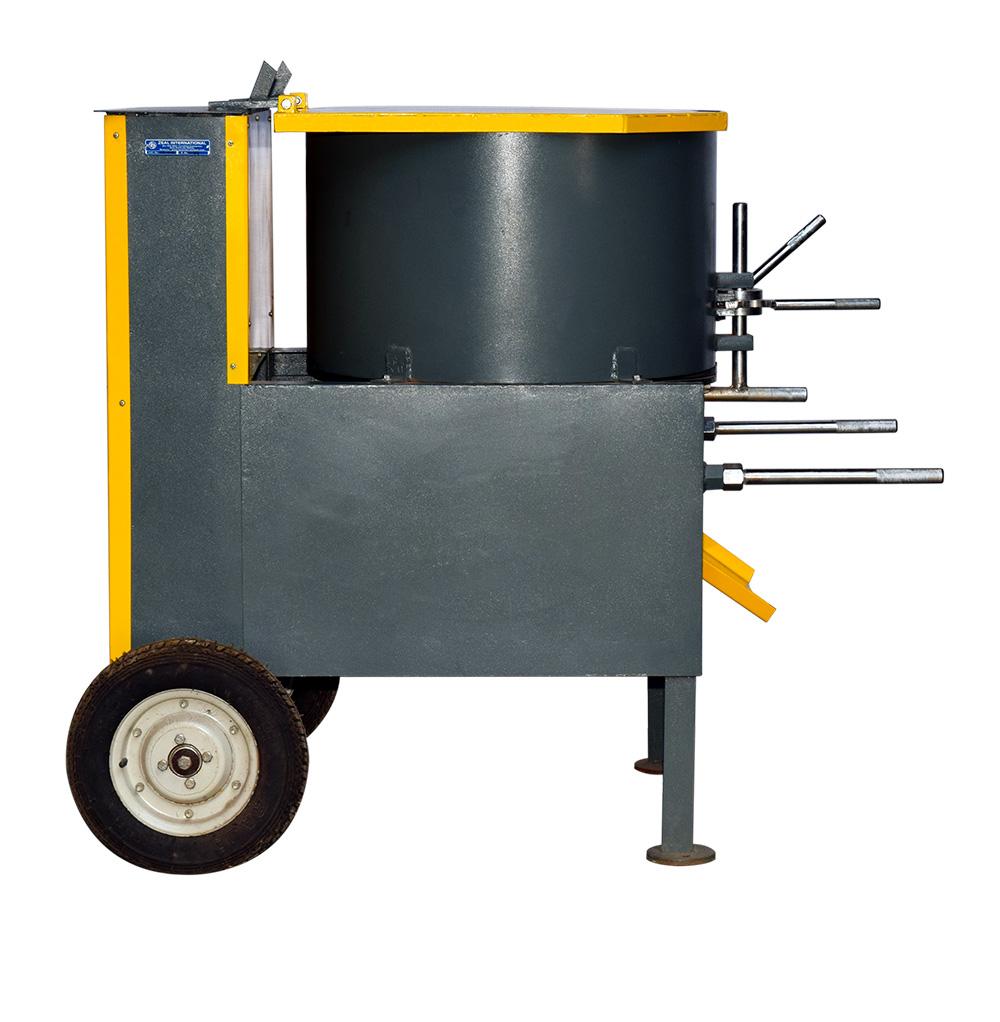

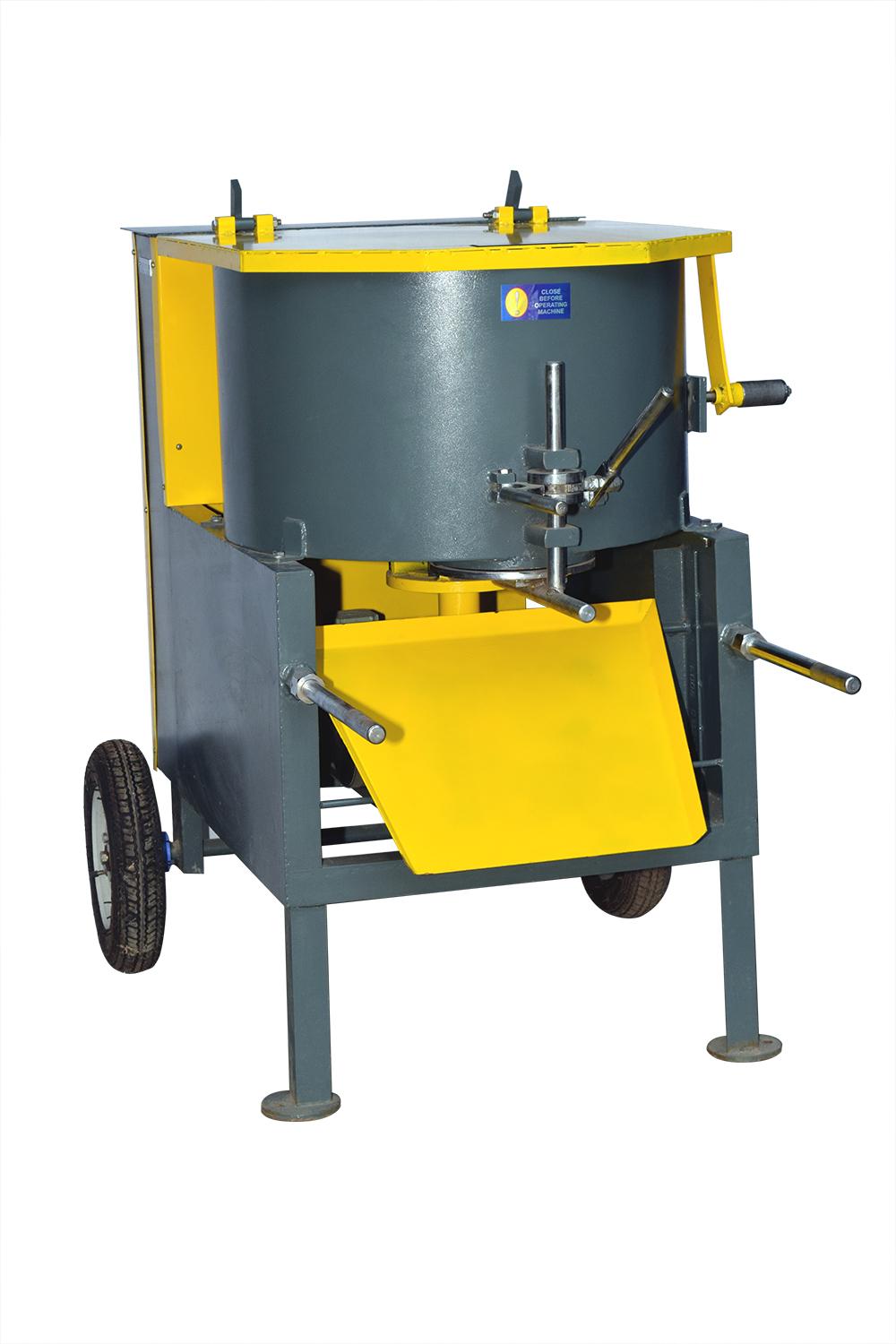

Labomix Concrete Pan Mixer

ZI 2019

Standards:

Specification:

The right choice for the demanding professional user. Here you get the best value for money without making any compromises on the well known Labtest virtues. Quality, durability and efficiency completely lives up to even the highest demands.
Features:

  •  Large motor with plenty of power
  •  High quality and finish

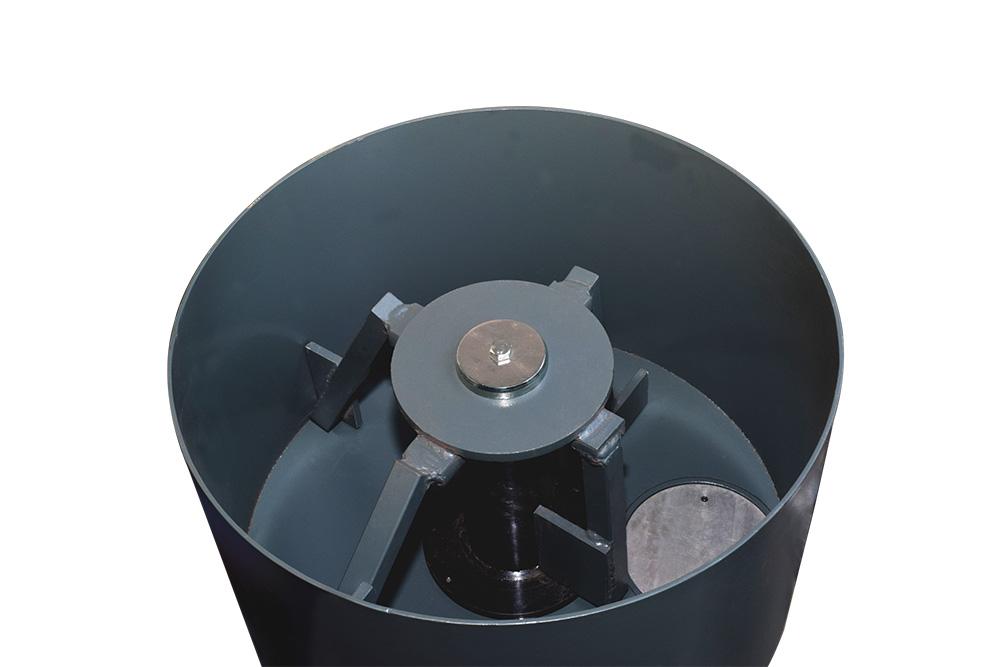

  •  Exchangeable mixer shovels
  •  Automatic emptying of the container
  •  Large transport wheels makes it easy to load the mixer
  •  Easy to clean
  •  Positioning bolt secures the cover during use/transport
  •  Can be operated by one man
  •  Maintenance free high quality gear
Model ZI 2019A ZI 2019B ZI 2019C ZI 2019D
Motor (KW) 1.1/1.1 1.5/1.5 2.2/1.8 4.0
Currency (V) 1x240 1x240 3x440 3x440
Gear/RPM 32 32 32 32
Container capacity (L) 90 120 200 300
Mixing capacity (L) 74 90 160 250
Mixing capacity (KG concrete) 174 211 376 587
Dimensions
(W X D X H) (mm)
640 x 800 x 107 640 x 800 x 107 780 x 105 x 116 100 x 142 x 122
Weight (KG) 80 90 180 245



Labomix Concrete Pan Mixer
Labomix Concrete Pan Mixer
Labomix Concrete Pan Mixer
