ZI 6015
Standards:
Specification:
ZI 6015 : Hoek Triaxial Cell BX, 42.04 mm dia.
ZI 6015-A : Spare Sealing Sleeves dor Hoek Triaxial Cell BX
ZI 6015-B : Hoek Triaxial Cell NX, 54.7 mm dia.
ZI 6015-C : Spare Sealing Sleeves for Hoek Triaxial Cell NX
ZI 6015-D : Hoek Triaxial Cell HQ, (Ø 63.5 mm)
ZI 6015-E : Spare Sealing Sleeves HQ, (Ø 63,5 mm) for Hoek Triaxial Cell Hoek Cells have been designed to be used for triaxial testing of rock specimens.

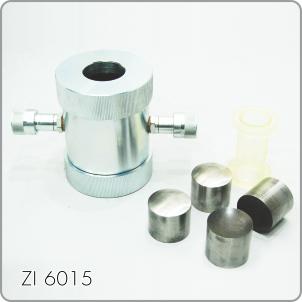

Hoek Cells comprise a steel body complete with two quick release self-sealing couplings, two steel end caps which are screwed to the cell body, 2 pieces of upper and 2 pieces of lower loading caps with spherical coupling and a rubber sealing sleeve to separate the specimen from the cell fluid.
