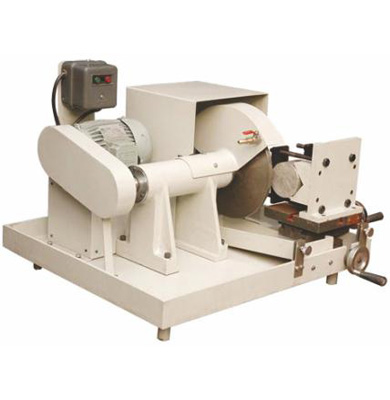

Core Cutting Grinding Machine

ZI 6006

Standards:

Specification:

Table Mounted
Stable Construction Feed arrangement for cutting
Feed arrangement for cutting
Cooling water arrangement

This unit is designed for cutting and grinding cylindrical rock specimens upto NX size. The outfit includes 200mm dia diamond impregnated cutter, a fine diamond impregnated grinding wheel a water supply system and sampler holder.

A V-Vice, to hold the sample up to 55mm dia x 140mm long to be cut parallel and square to the longitudinal axis is provided. Cores longer that 140mm can be prepared by reversing the specimen and holding against the vice, A hand feed arrangement is provided to facilitate the specimen with a uniform and smooth feeding motions. This unit is provided with a 3 HP, Three Phase, 440 V A.C. Motor.
