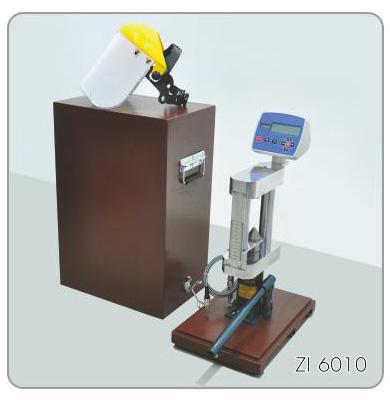

Digital Point Load Test Apparatus

Digital Point Load Tester consists of a 60 kN capacity load frame with a hydraulic loading ram driven by a hand pump. The frame is adjustable for testing of samples up to 102mm diameter. A ruler assembled on the frame allows the direct measurement of the distance between the conical platens before and after the test. The compression load is measured by a pressure transducer connected to an advanced digital display unit assuring the best accuracy and resistance to the failure shocks

Safety Features of Digital Point Load Test Apparatus:

•  Load range : 0 - 60 kn
•  Digital display : 2 x 16 characters
•  Resolution : 32.000 div.
•  Accuracy : ± 1%
•  Load pacer included
•  Load measurement in both kn and mpa
•  Serial port for pc connection
