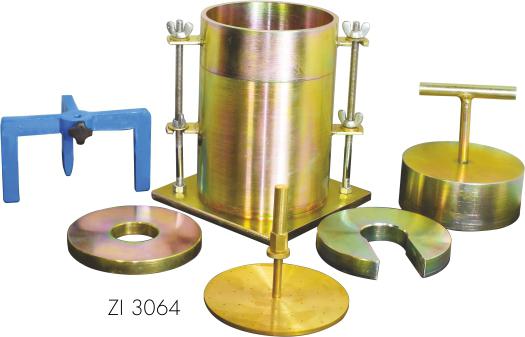

CBR Apparatus Mould (ASTM Standard)

ZI 3064

Standards:ASTM D 1883 AASHTO T 193

Specification:

ZI 3064A CBR mould body complete with collar & perforated base plate. Plated Steel 6 In.(152.4mm) Dia x 7 In. (177.8mm) Height
ZI 3064B Spacer Disc with T handle 515/16 In. Dia(150.8mm) x 2.416 (61.4mm) height
ZI 3064C Annular surcharge weight 2.27 kg
ZI 3064D Slotted surcharge weight 2.27 kg
ZI 3064E Filter paper 150 mm dia No 1 Fisherman (Pack of 100 circles
