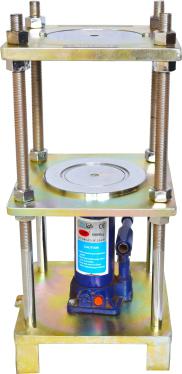

Universal Extruder Frame Hydraulic

ZI 3045

Standards:

Specification:

It consists of a 50Kn capacity hand operated, hydraulic jack mounted on a suitable frame. Two plungers, one for 4”/100mm dia and the other of 6”/150mm dia moulds are supplied Height of thrust plate is adjustable.
Accessories :
Set of plungers adaptors and thrust plates for 38mm, 50mm and 75mm dia specimen.
Note: Motorised model also available
