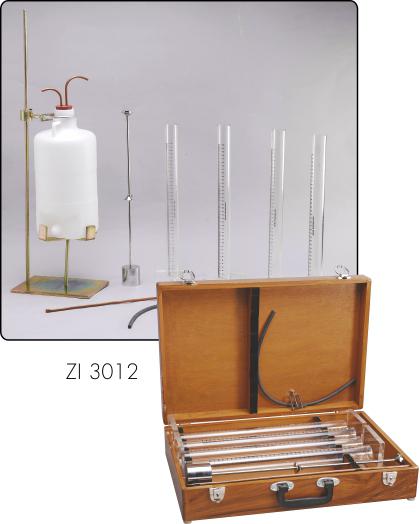

Sand Equivalent Test Set

ZI 3012

Standards:ASTM D 2419, AASHTO T 176

Specification:

Used to determine the relevant proportions of clay-like or Plastic fines and dust in granular soils & fine aggregate Consists of:

Acrylic graduated cylinder (4 nos.)
Rubber stopper for cylinder (4 nos.)
Graduated Steel rule 450 mm
Funnel 100 mm plastic
Aspirator bottle 5 lts plastic with rubber cock
Stand for the aspirator bottle with siphon assembly
Irrgation tube with stop pinch cock & weighted foot assembly

Optional : Stock solution can be supplied at an extra cost
