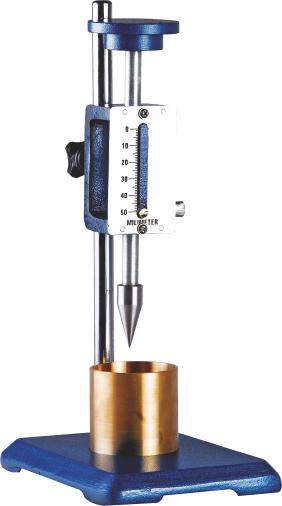

Soil Cone Penetrometer

ZI 3004

Standards:IS 2720 (PART IV)

Specification:

Specification:
For determining the liquid limit of soils. This is specially useful to obtain reliable and accurate results of those soil which have low plasticity index. The percentage moisture contents determined when cone with half angle of 15-30 minutes under a total sliding weight of 148 gm penetrates 25mm gives the liquid limit
