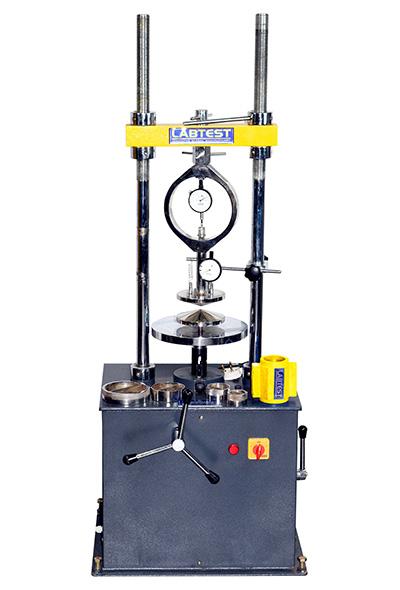

Unconfined Compression Tester (Motorised)

ZI 3056

Standards:IS 2720 (PART X) ASTM T 208

Specification:

Comprises a screw operated load frame, cap.5000kg with a gear box and motor drive giving 1.25, 1.5, 2.5mm/min. Rates of strain, a pair of cone seating, adaptor for proving ring, and stain dial gauge bracket. Supplied with one pair of male/female coning tools for 38mm dia samples but without ring and dial gauge. Suitable for operation on 230 V, Single Phase A.C. Supply.
Accessories:
Coning tools in pairs (Male & Female) for samples having diameter 38, 50, 75 & 100mm
